Fundamentals of Timing Devices

Fundamentals of Timing Devices:
Foundations for New Models of Brains

Timing Devices is part of a new technology that has been developed to model activities of brains. Fundamentals of Timing Devices, discussed on this page, is a compact statement of the timing devices system starting from first principles. The intent is to emulate paradigms of mathematics and physical science that have qualities of exactitude, simplicity and integrity.

(...) Fundamentals of Timing Devices, .pdf file (166 kB)

A previous publication, An Ear for Pythagorean Harmonics: Brain Models Built From Timing Devices [web page and .pdf file (466 kB)], applies the timing devices system to auditory experience. There has been a course of development with continual modifications and improvements. (History of timing devices.) Fundamentals of Timing Devices is a re-construction of prior statements of the timing devices system in anticipation of further development.

Preview of materials from Fundamentals of Timing Devices:

(...) Introduction - Section 1 of the .pdf file

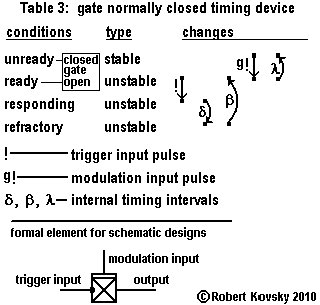

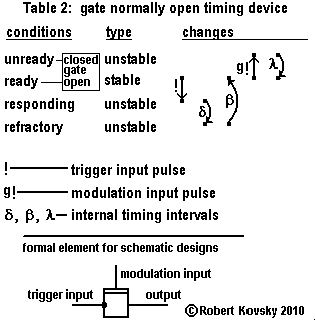

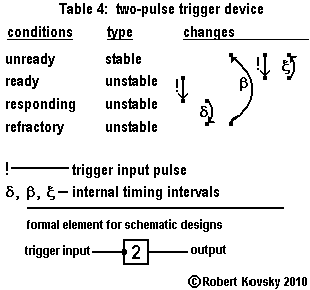

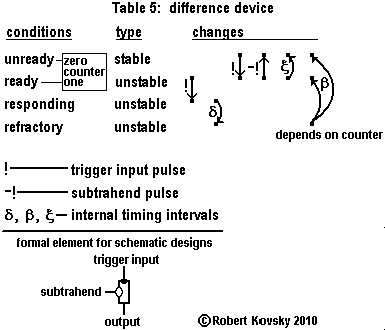

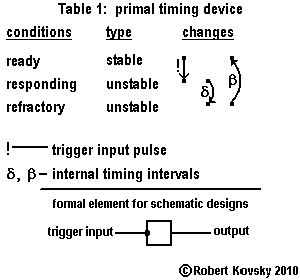

(...) Tables - engineering forms for 5 core timing devices that integrate the presentation

Introduction

"Timing devices" proposes a new way to investigate brains. An individual timing device acts like a neuron and an assembly of timing devices performs specific brain-like functions. The resemblances are imperfect because timing devices are idealized mental constructs. The author suggests that, despite the defects, timing devices identify principles that can guide investigations into actual brains. The Ideal Gas Law (pV=nRT) is a similar mental construct.

Designs for timing device assemblies look like schematic diagrams used in standard electronic circuits. In circuit diagrams, iconic symbols stand for electronic components that come from a "kit of parts" made up of physical devices. The electronic kit of parts has a "core" that includes resistances, capacitances, signal sources, diodes and bipolar junction transistors. A person builds an electronic circuit by taking parts from the kit and connecting the parts according to a schematic diagram for the circuit. Core parts make up modules that generate and process important classes of signals, e.g., sine waves and their combinations. Additional devices such as photo-sensors and memory devices supplement the core.

The features of standard electronic circuits described in the preceding paragraph re-appear in the timing devices system. At this time, the core members of the timing devices kit of parts are:

the primal timing device;
the gate normally open timing device;
the gate normally closed timing device;
the two-pulse trigger timing device; and
the difference device.

This presentation of the core timing devices is developmental. The primal timing device is a minimal unit and is the point of origin. The step from the primal device to the gate normally open device resembles the step from the semiconductor diode to the bipolar junction transistor (pnp or npn). Development of later devices involves further additions and modifications.

All devices and designs are conceptual; there are no plans for working models.

A tabular form is used to integrate the presentation of the five core timing devices. The author suggests that the integrated tabular form provides a solid foundation for further development of the timing devices system.

(...) Fundamentals of Timing Devices, .pdf file (166 kB).

Tabular Forms

**A set of tabular forms organizes the core devices of the timing devices system**.

(...) Fundamentals of Timing Devices, .pdf file (166 kB).

History of Timing Devices

The timing devices system was developed from Quad Nets, discussed on a separate website (...). I published the Quad Nets Model online in October of 2006 and posted a notice on the "neurodudes.com" blog. Readers of the neurodudes blog offered criticism and suggestions.

In brief, a Quad Net "device part" is made up of a large number (e.g., thousands) of elemental device units that are organized through "tiling" principles and collectively activated; and a Quad Net device part is a model of a "neuronal group" that is a chief organizing unit in brains. Although resembling prior physical paradigms, the proposed device models are independent conceptions and are fully presented in my publications. The central principle of the Quad Net Model - the principle of Shimmering Sensitivity that I suggest resembles human consciousness - is embodied in collective activity. As stated in the Quad Net publications, such collective activity cannot be tracked mathematically (at least as far as I know) and Images of designs and operational charts are the chief means used to describe the system.

In a dialogue with me that extended over several messages, Eric wrote:

It would really help if you dissected an individual 'tial' mathematically. That is, what rules do they follow? What are the rules for how they interact with one another? Is there an example of a computation that they can perform? E.g., xor.
...
Bob: without an equation to describe how an individual element works, it's impossible for me to say anything more. Even if you need six to get a cycle, it would be very helpful to know what is cycling, what the rules governing the individual elements of the cycle. It is usually pedagogically most useful to start simple, with equations that govern how an individual element (whether it be neuron, capacitor, etc) works, and then build up slowly to more interesting behavior.
...
[Eric noted comparisons to:]...cellular automata, but the rules governing the behavior of individual cells is quite explicable. My main point is, that as a sociological fact, few people will read or understand your theory unless you take what you call the 'atomic-molecular' approach.
...
also it would be good to fill out in more detail the input-output transform being implemented by an individual element: a drawing that specifies the inputs, outputs, and the transform between the two.

Mike wrote:

Here's my advice, from 20 years in the industry.

Define what each unit does.
Describe how the units interact.
Show that the interaction causes the units to generate a representation.

The "six" units Eric referred to were obviously those shown in connection with the Simple Cycler device assembly in § 4.a of the Quad Nets paper. Following the advice of Eric and Mike, the elemental devices in the Simpler Cycler became primal timing devices with reductions as they suggested. Section 4.e of Quad Nets involved "one pulse triggers" and "two pulse triggers" that reduced to the "one-pulse trigger rule" and the "two pulse trigger rule" for timing devices. Controller operations discussed in § 4.f had been conceived with prior gate devices in mind, namely, relays, vaccuum tube triodes and bipolar junction transistors; and gate timing devices devices followed directly.

I first published the original Timing Devices paper online in February of 2007. (..., .pdf file, 832 kB)
Thereafter, the original paper underwent a course of development and was published in its final version in June of 2008 (..., .pdf, 833 kB) on the web page "Timing Devices or why brains are not computers" (...).
As shown on the web page, musical experience appeared suitable for modeling with timing devices. In February of 2009, I conceived of connections between harmonies and timing device assemblies that developed into "An Ear for Pythagorean Harmonics: Mathematical Processing in Brain Models Built From "Timing Devices" (..., .pdf, 212 kB) published in April of 2009 on the web page, "Shimmering Silences in Beautiful Music / An inquiry into the nature of personal experience" (...).
The Ear for Pythagorean Harmonics became a vehicle for further development, leading to publication in December of 2009 of "An Ear for Pythagorean Harmonics: Brain Models Built From Timing Devices" (..., .pdf, 460 kB) on a web page with the same name (...).
In retrospect, the main work in developing timing devices was devoted to the "difference device." The original paper used the concept of a difference device to run a rudimentary engineered organism. Subsequent publications progressively sharpened and extended attempts to construct a device performing "exact" subtraction and to employ it in applications. The December 2009 publication achieved further advances but at a cost of introducing "algorithmic" processes that were foreign to the Quad Net origins of the devices.
Fundamentals of Timing Devices resolves the earlier difficulties and re-establishes the core timing devices on the basis of the original Quad Net Model.
In that the original timing devices were reductions from the collective Quad Net Model, there appears to be a development path for Quad Nets involving core timing devices and their assemblies modified for organization through tiling principles and collective activation.

(...) Fundamentals of Timing Devices, .pdf file (166 kB)
